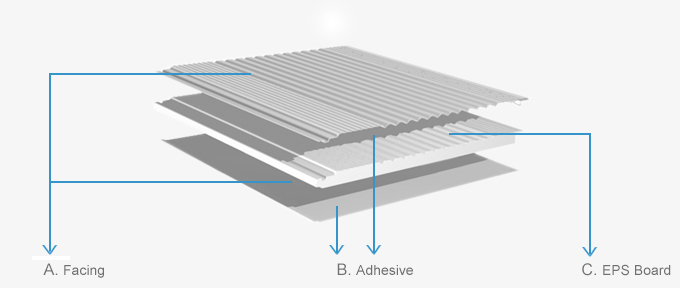

| | Core Type | Polystyrene, Self-extinguish, non CFC, ROHS free | | Density | 16 kg/m³, 20 kg/m³, 25 kg/m³, 30 kg/m³ are available | | Thermal Conductivity (K) | 0.031 W/m K (ASTM C177) | | Fire Behavior | Class B2 (DIN4120-1) Extinguish in 1 second (JIS A 9511) |
| | | | | Base Metal | Coating | Base Metal Thickness (mm.) | Standard | | Pre-painted Galvanized Steel | Z120 | 0.40, 050, 0.55 | JIS G3312, KS G3312, ASTM A755 |
| | * minimum order required | | | | | Standard Paint Type | Paint Thickness | Standard Color | | Regular Modified Polyester | 5+20 µ | White |
| | * Other coating option available with minimum order requirement |
|
| Panel Thickness (mm.) | Length (mm.) | Width (mm.) | | 50-300 in multiple of 25 | 2,500-18,000 cut to order | 1000 |
|
|
| Thickness
(mm.) | R-Value
(m² K/W) | U-Value
(W/m² K) | Nominal Weight (kg/m²)
SW-0/SW-10 | Nominal Weight (kg/m²)
V-50 | Temperature Guide Range
(c°) | | 50 | 1.61 | 0.62 | 10.00 | 10.80 | - | | 75 | 2.42 | 0.41 | 10.50 | 11.30 | - | | 100 | 3.23 | 0.31 | 11.00 | 11.80 | Cooler 4 to 10 | | 125 | 4.03 | 0.25 | 11.50 | 12.30 | Cooler 4 to 10 | | 150 | 4.84 | 0.21 | 12.00 | 12.80 | Chill Cooler -4 to -23 | | 200 | 6.45 | 0.16 | 13.00 | 13.80 | Holding Freezer -23 to -29 |
|
Note:
1. Weight of EPS Panel is based on 0.55 mm. Union steel thickness and 20 kg/m³ density EPS board.
2. Recommended Insulation guide from ASHRAE Refrigeration Handbook is given with limitation to panel length. Maximum panel length requires consideration on allowable load span and thermal bowing effect.
Please contact us for more information.
|
|
